优冈股份卧式加工中心机 HMC-500A/500B/630/800

å§å¼å å·¥ä¸å¿æº

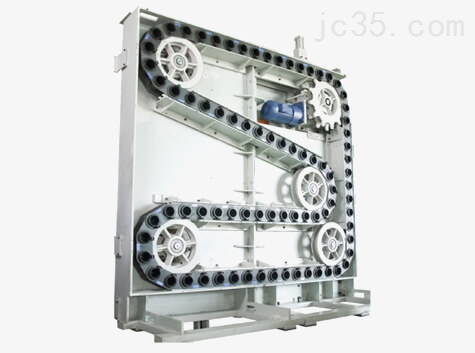

40 Tool Chain Type Magazine

The magazine id driven by a precision cam, deaturing fast and accurate tool positioning.
The magazine accepts ISO40 tool shank.
The selection is bi-directional and random for fast tool change.
The magazine is separately mounted from the cutting area combined with a protection door to protect tools from contamination from chips or coolant.

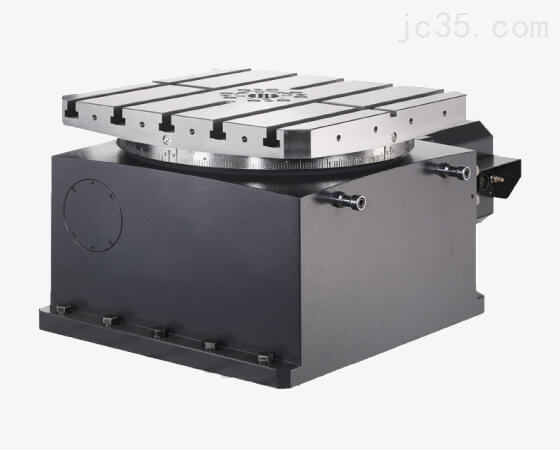

Rotary Table (HMC-500A)

The rotary table employs three-piece teeth plate for high accuracy indexing.
The three-piece teeth plate combined with hydraulic locking mechanism allows full teeth angagement. This results in higher rigidity and increased heavy cutting capacity.

Rotary Table (HMC-500B)

The rotary table is designed with hydraulic-expansion circular locking mechanism.During locking, the complete circumferencr is completely tightened. this results in higher rigidity and increased heavy cutting resistant capability.

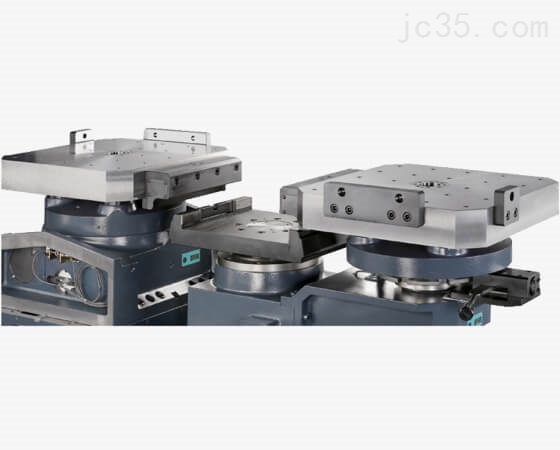

Automatic Pallet Change

Swing type automatic pallet change features stable construction and smooth change motion.
Pallet change is fast-accomplished in only 8 seconds.
Plaaet positions on oversized cones taht guarantee high positioning accuracy.
Max. pallet loading capacity is 400kg.

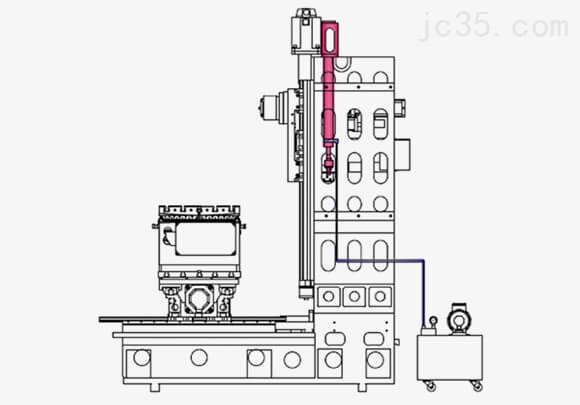

Hydraulic Balance System

The Y-axis movement is counter balanced through a hydraulic cylinder.
An accumulator is equipped in the hydraulic circuit.
This counter balance system will reduce spindle head vibration to a minimum, while significantly improving machining accuracy.

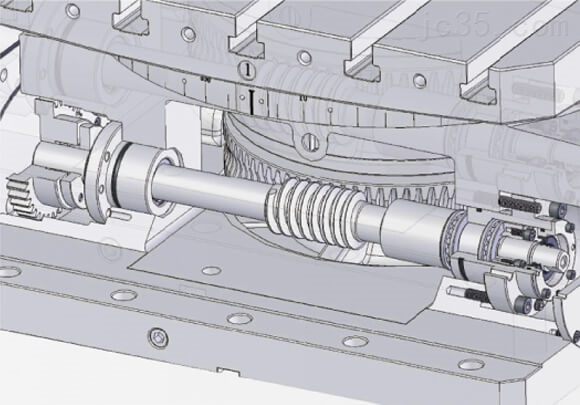

Duak Pitch Worm / Worm Gear Set

The transmission mechanism employs high efficiency "Dual Pitch Worm / Worm Gear Set" for increasing teeth engagement percentage. This outstanding feature offers increased efficiency and wear-resistant capability.

Gea Box

The spindle runnung is through a gear box, making the machine excellent for heavy cutting applications.

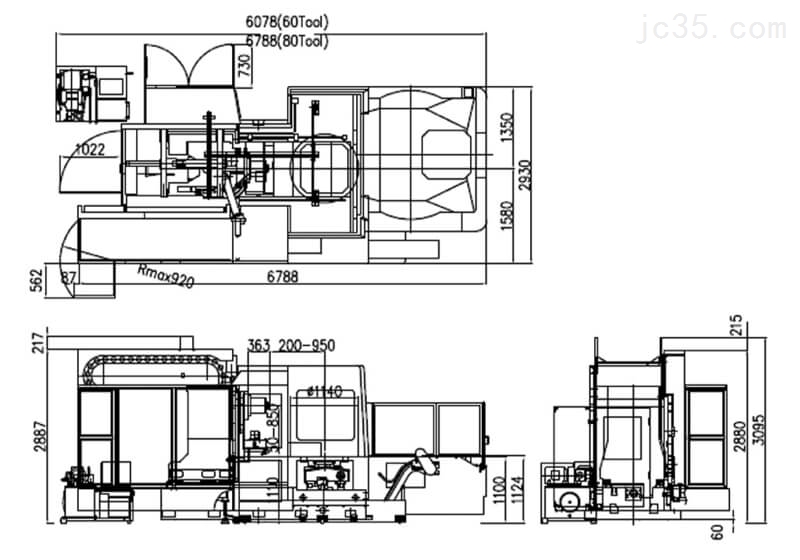

HMC-630 / 800

ISO50 Spindle Taper (Gear Drives)
X, Y, Z axes rapid traverse 20/20/20 M/m
800x800 table x2
100x800x750mm Travel
Index table 1°/0.001°
15/18.5KW Spindle motor
Automatic pallet change
Chain type 60 Tool ATC

Hight Precision & Rigid Spindle

Durable accurate spindle bearing and step design procide high torque, rigidity and precision.
High torque spindle motor and spindle support bearing arrangement provide efficient cutting performance.

Automativ Tool Changer

The tool magazine, coupled with rapid tool change and random access selection save time and offer high productivity.
A servomotor controls the magazine to produce smooth, precise, reliable positioning.
HMC-630 / HMC-800 : STD 60, OPT:80
